Graphene on Your Substrate
Graphene on Your Substrate - Processed in Clean Room Class 1000
This is a tailor made graphene product. You send your substrate to our laboratory (including your order ID and your email address as a reference) and we then use our innovative method to transfer the graphene monolayer on top of it and send it to the address you specify. Examples of substrates we have successfully transferred graphene to: devices, solar cells, LEDs, gold, alumina, silver mirrors and sapphire.
- · Growth Method: CVD synthesis
- · Transfer Method: Wet transfer method
- · Appearance (Color): Transparent
- · Transparency >97%
- · Appearance (Form): Film
- · Coverage >95%
- · Number of graphene layers: 1
- · Thickness (theoretical) 0.345 nm
- · FET mobility on Al₂O₃: 2800 cm2/Vs
- · Hall mobility on SiO₂/Si: 2000-3500 cm2/Vs
- · Sheet Resistance on SiO2/Si: 450±40 Ohms/sq (1cm x1cm)
- · Grain size: Up to 20 μm
All our samples are subjected to a rigorous QC in order to ensure a high quality and reproducibility of the graphene.

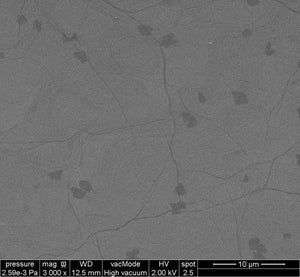

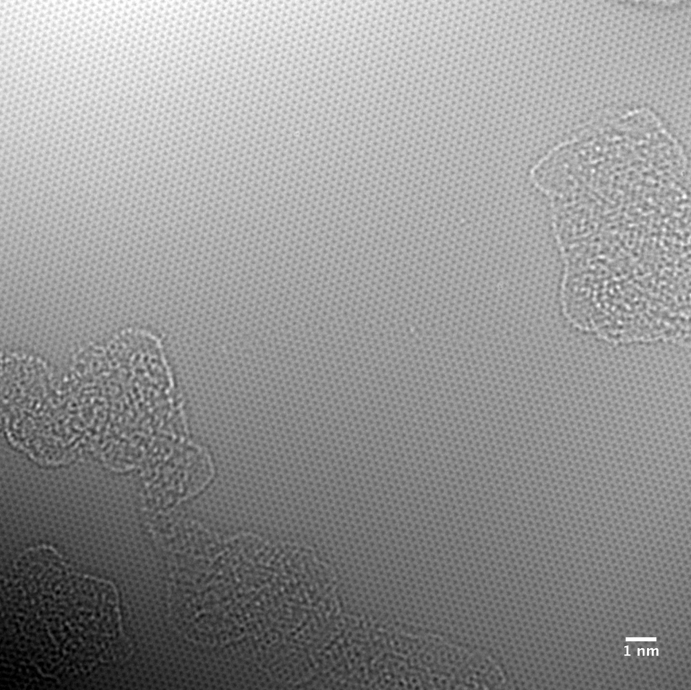

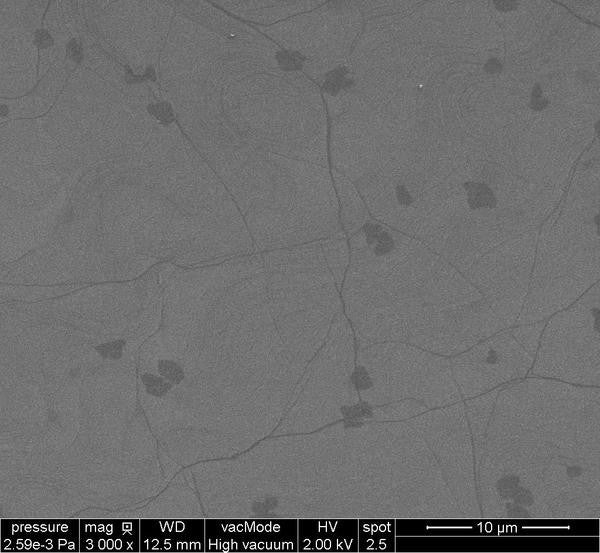

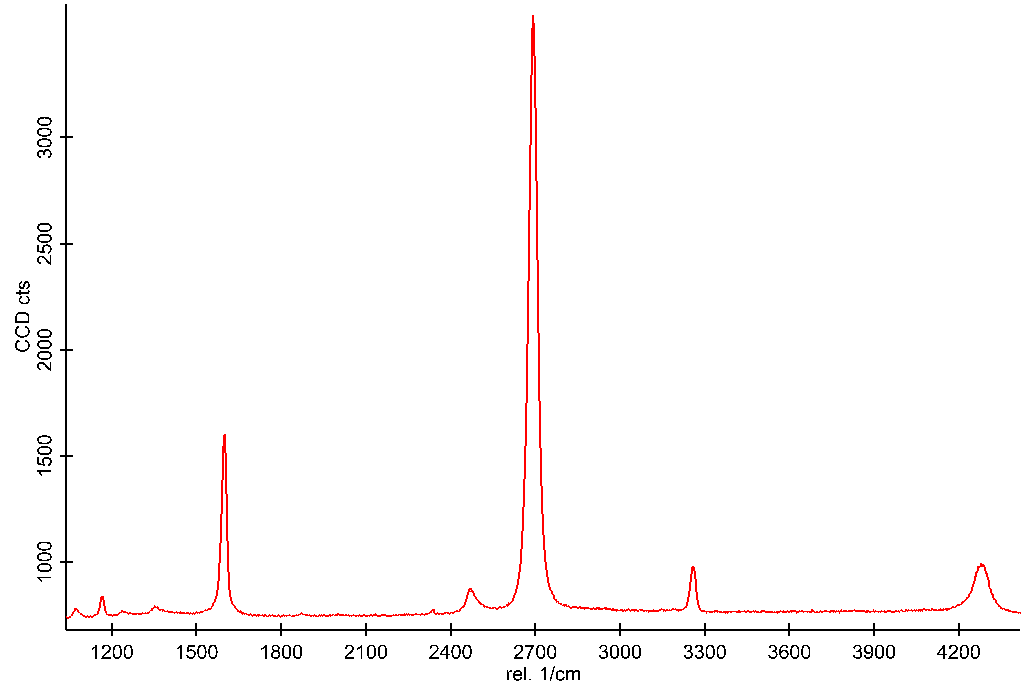

- · Raman Spectroscopy on each batch: I(G)/I(2D)<0.5; I(D)/I(G)<0.05
- · Optical Microscopy inspection of each individual sample to ensure good transfer quality and purity
If your application requires more specific controls (AFM, SEM...) please do not hesitate to contact us.
“Water Desalination across Nanoporous Graphene”, ACS Publications, Nano Lett., 2012, 12 (7), pp 3602-3608; doi: 10.1021/nl3012853
“Selective Molecular Transport through Intrinsic Defects in a Single Layer of CVD Graphene”, ACS Nano Publications, 2012, 6 (11), pp 10130-10138; doi: 10.1021/nn303869m
“Graphene/Polymer Nanocomposites”, Macromolecules, 2010, 43 (16), pp 6515-6530; doi: 10.1021/ma100572e
