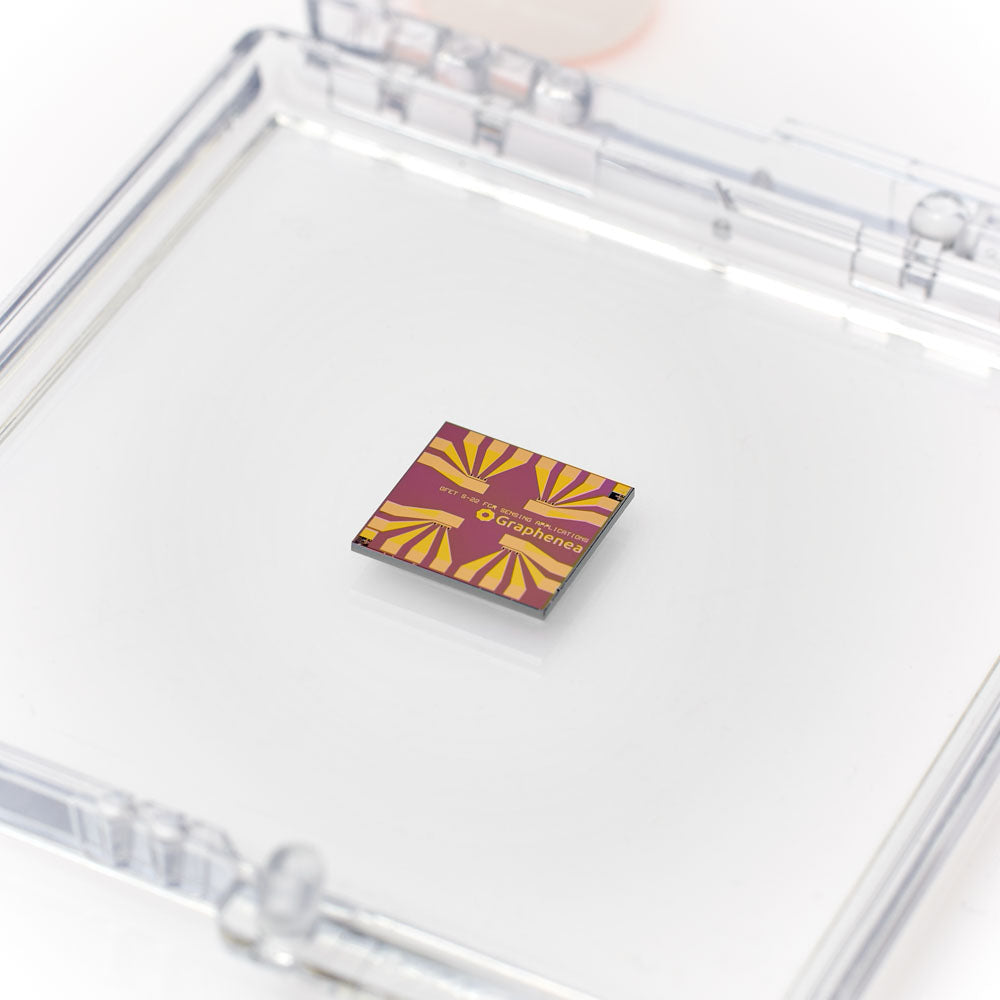

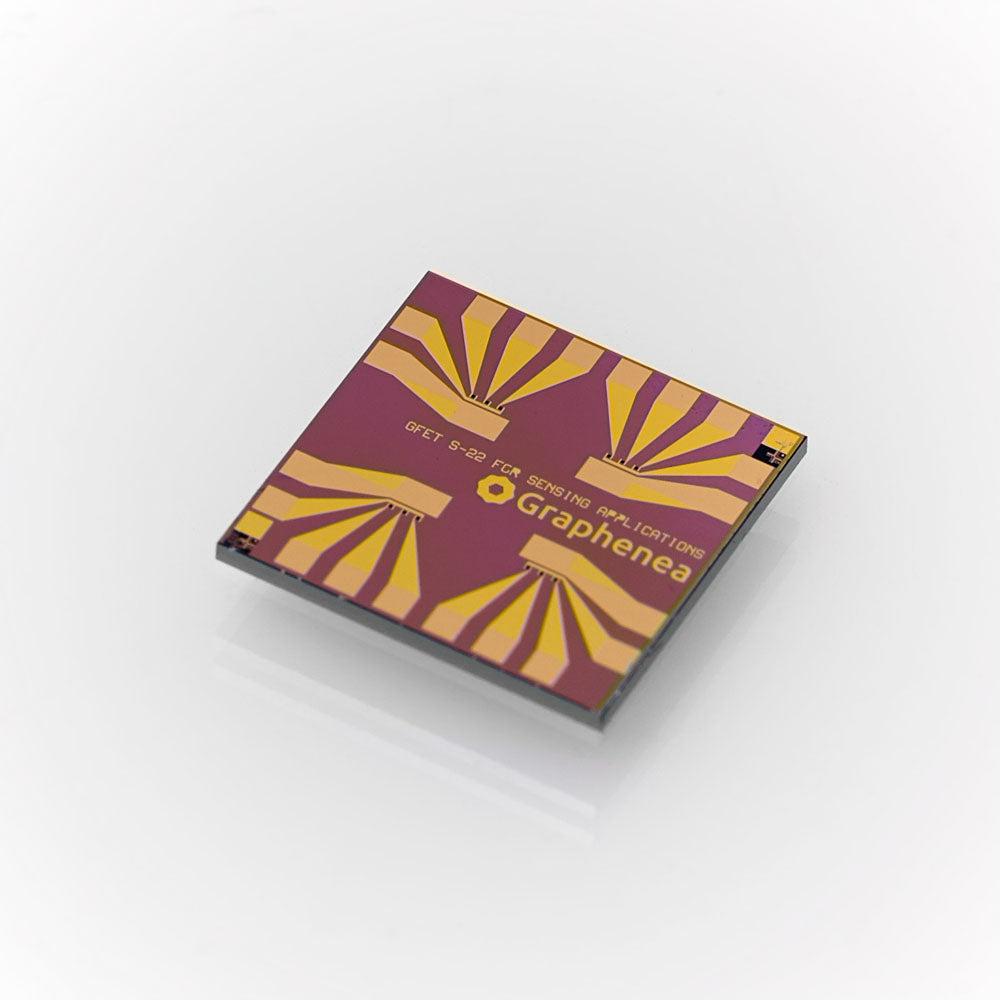

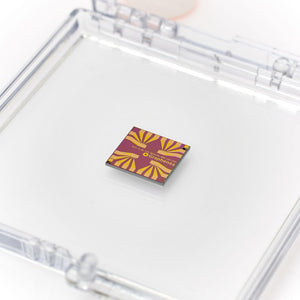

GFET-S22P (Die size 10 mm x 10 mm) - Processed in Clean Room Class 1000

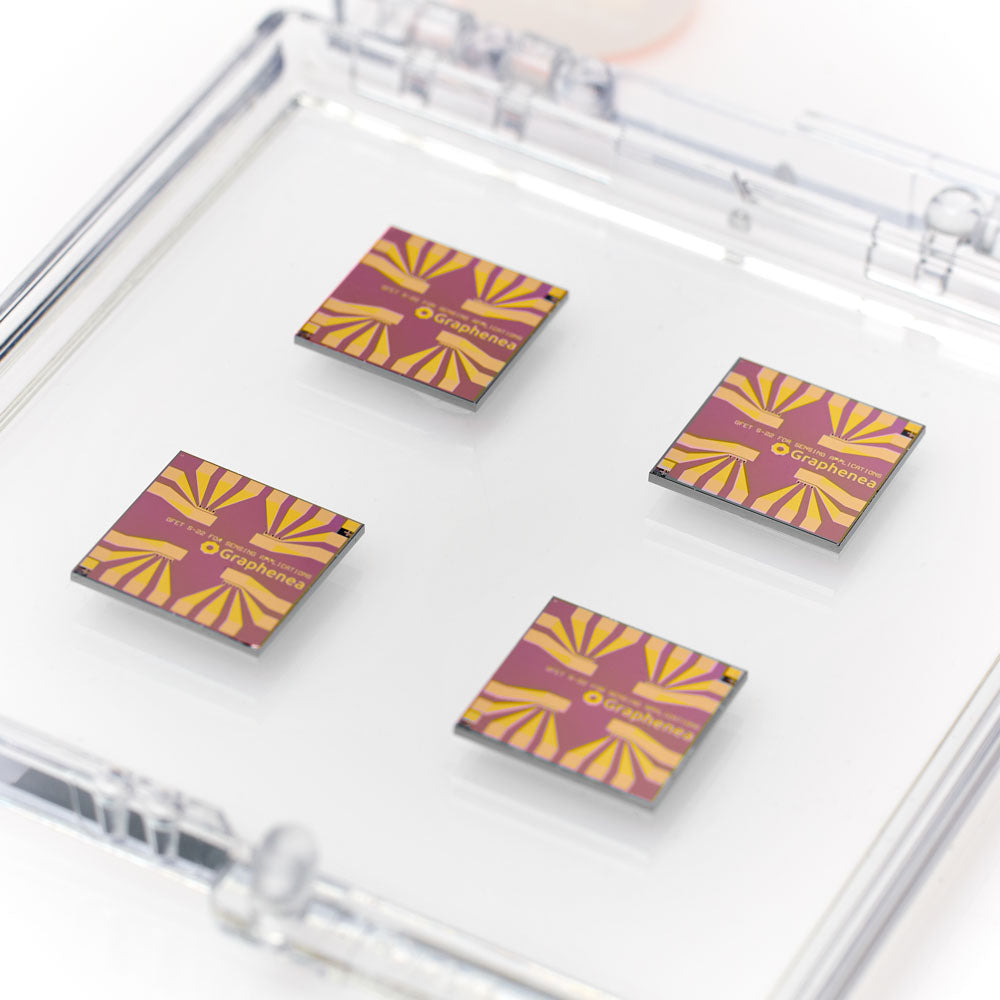

The GFET S-22P chip from Graphenea is designed for measurements in liquid medium. The new version provides 4 independent set of graphene devices, each set with 3 individual channels, with encapsulation on the metal pads to avoid degradation and reduce leakage currents; the probe pads are located near the periphery of the chip. It also includes a non-encapsulated electrode at the center of the chip, which allows liquid gating without the need of an external gate electrode (such as Ag/AgCl probes). This device architecture enables each one of the set of devices to be modified individually, to obtain a multiplexed measurement.
- · Growth method: CVD synthesis
- · Chip dimensions: 10 mm x 10 mm
- · Chip thickness: 525 μm
- · Number of GFETs per chip: 12 in parallel

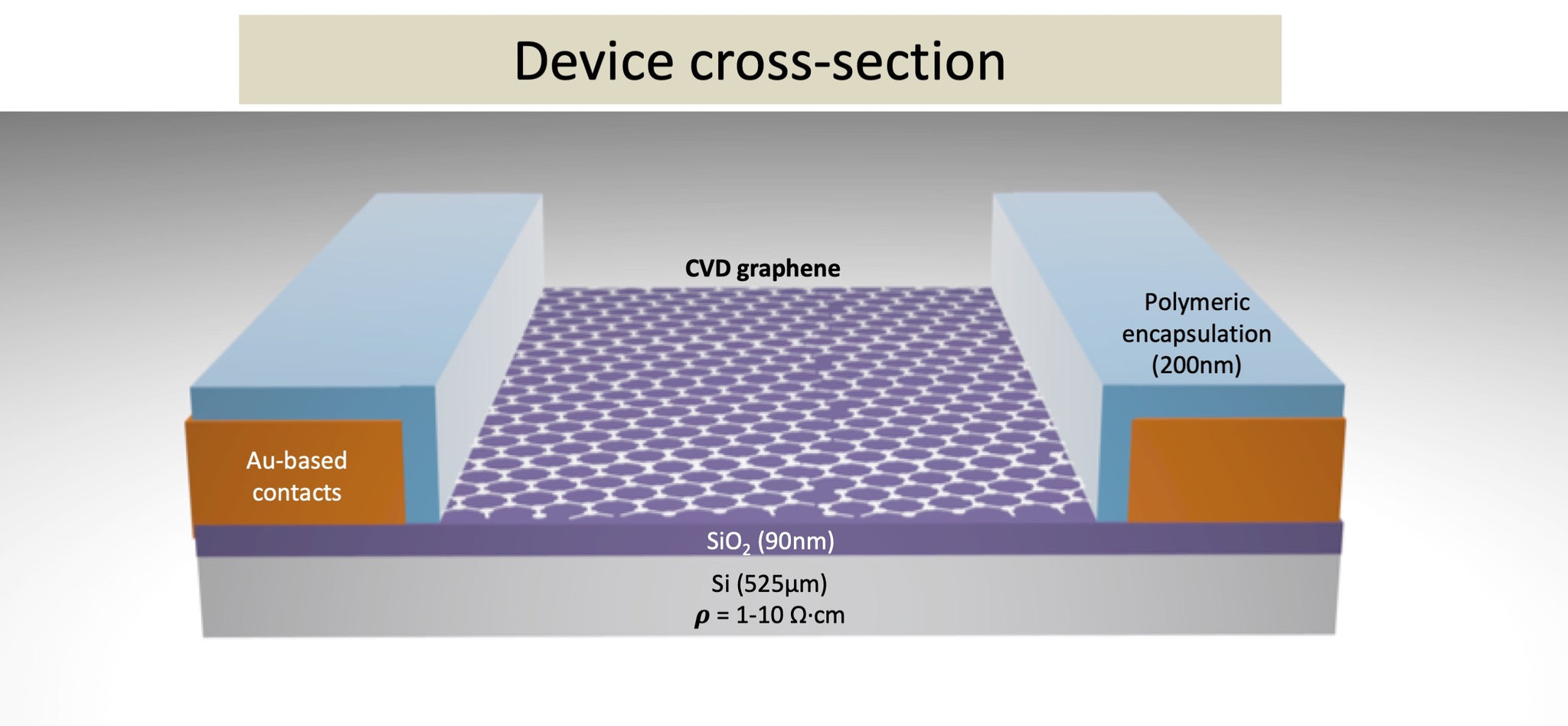

- · Gate oxide thickness: 90 nm
- · Gate oxide material: SiO2
- · Resistivity of substrate: 1-10 Ω.cm
- · Metallization: Au contacts
- · Graphene field-effect mobility: >1000 cm2/V.s
- · Encapsulation:≈200 nm glutarimide-based
- · Dirac point (liquid gating): <1V
- · Minimum working devices: >75 %
Absolute maximum ratings
- · Maximum gate-source voltage (liquid gating in PBS): ± 2 V
- · Maximum temperature rating: 150 °C
- · Maximum drain-source current density 107A.cm-2
All our samples are subjected to a rigorous QC in order to ensure a high quality products.

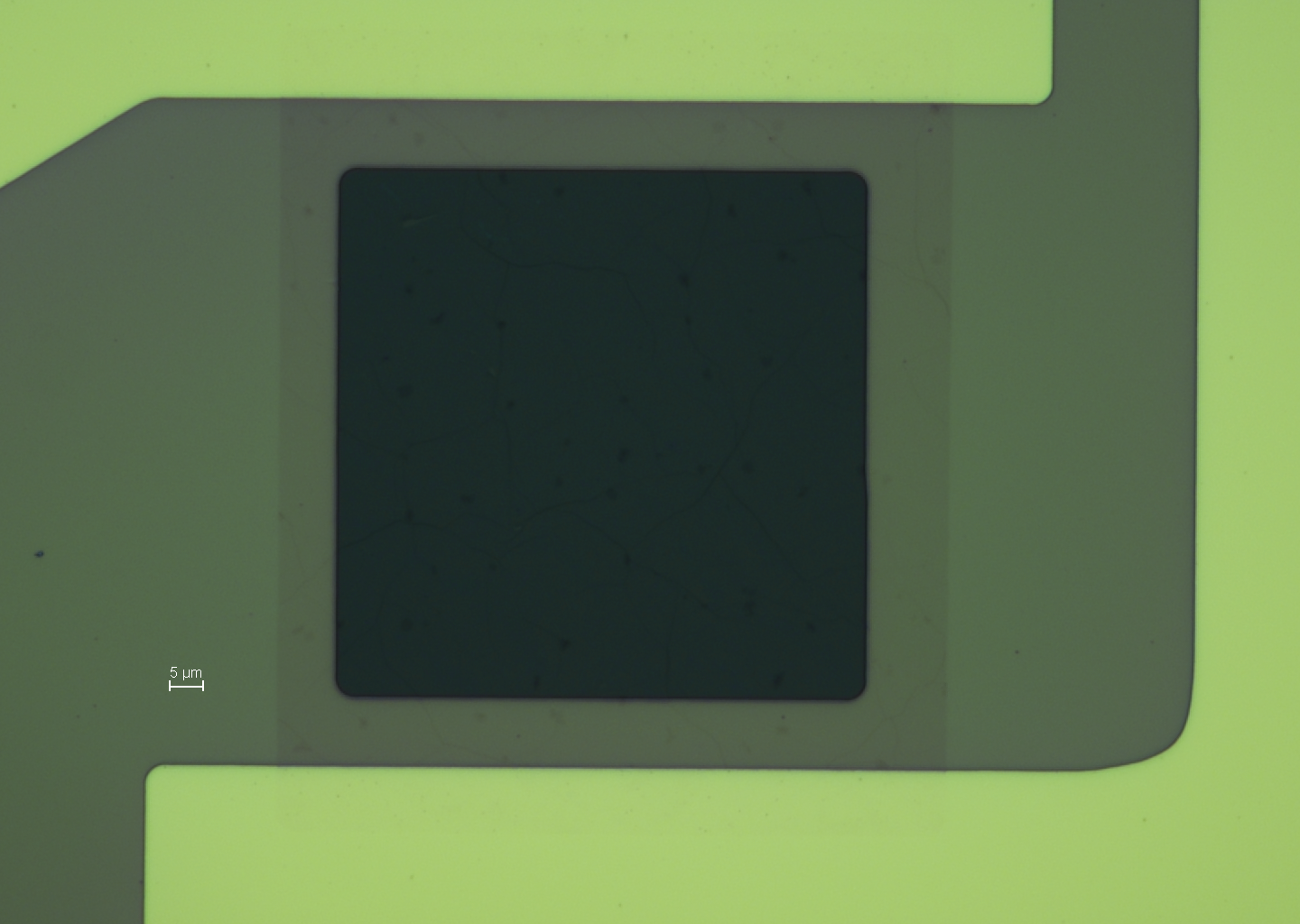

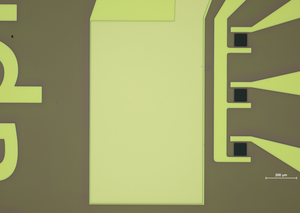

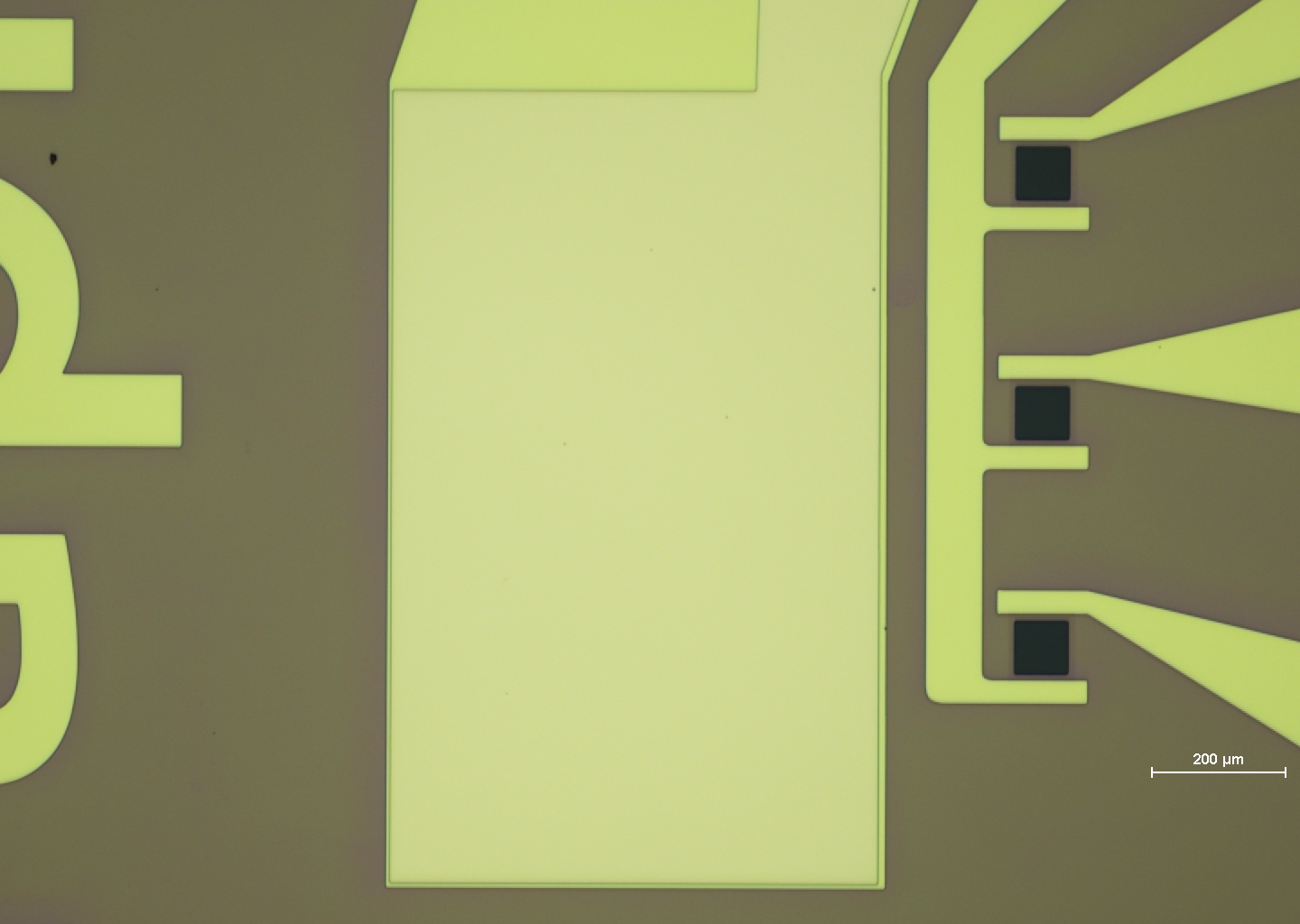

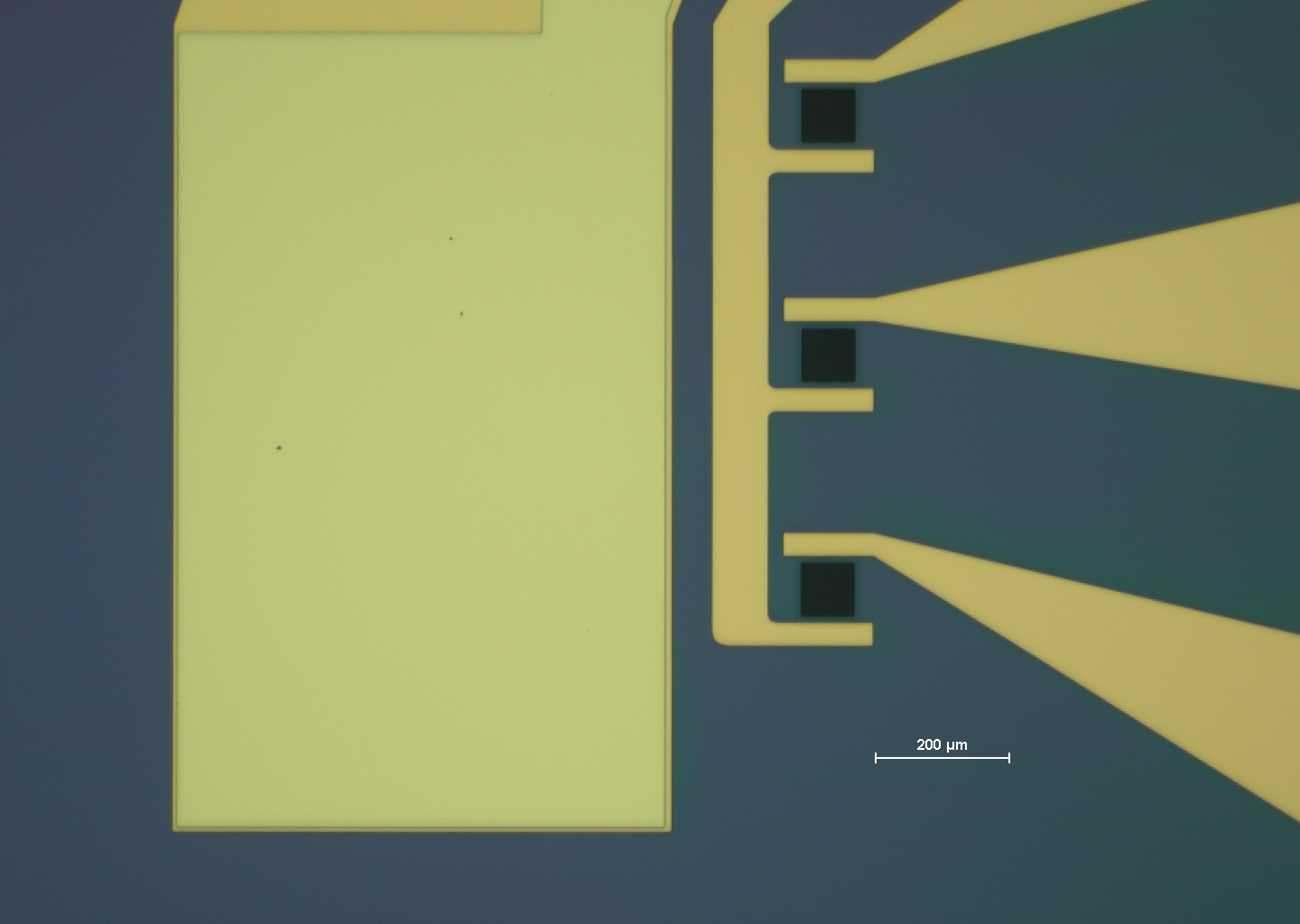

- · Optical Microscopy inspection of all the devices
- · Raman spectroscopy of each fabrication batch
- · Electrical characterisation of each fabrication batch
Graphene field-effect transistors (GFETs) have unprecedented sensitivity to the surrounding environment and is an ideal transducer for a variety of sensing applications. Depending on the application, GFETs can be tuned to be sensitive only to the stimulus of interest and have shown breakthrough performance in areas such as biosensing, graphene device research, chemical sensors and bioelectronics.
"High On-Off Ratio Graphene Switch via Electrical Double Layer Gating"
"High resolution potassium sensing with large area graphene field-effect transistors"
